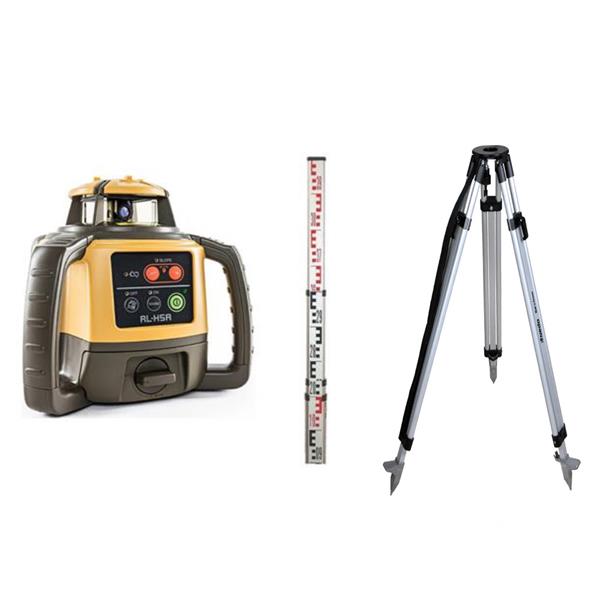

Topcon RL-H5A/E2 Horizontal Self-Leveling Rotary Laser LS-80L Reciever, Tripod and Staff

by Topcon
SKU 1052625-01K
Original price €899.00 - Original price €899.00
Original price
€899.00
€899.00 - €899.00
Current price €899.00

VAT Included

The Topcon RL-H5A Horizontal Self-Leveling Rotary Laser is a multi-purpose laser ideal for grading, excavating, site preparation, concrete works, and other general construction projects. When used with a receiver, it offers a long operating range up to 2,600 feet in diameter. This laser level also offers an accuracy of up to 1/16"" at 100 feet and is self-leveling within 5 degrees.

For added precision and accuracy, the RL-H5A features a manual single-axis leveling mode and rotates 600 times per minute. This horizontal rotating laser is simple to use, intuitive, and re-levels itself immediately if the device is disturbed on the job.

With an IP66 rating, the Topcon RL-H5A is protected from dust and low-pressure water jets. This rotary laser uses either a dry cell or a rechargeable battery that can power the device up to 100 hours, making it the great companion for a long day at work.

FEATURES:

  • Range up to 2,600 feet with receiver
  • Accuracy 1/16"" at 100 feet
  • Manual single-axis leveling
  • Self-leveling within 5 degrees
  • Rotation speed: 600 RPM
  • Re-levels immediately if disturbed
  • IP66 dustproof and water resistant
  • Option for dry cell or rechargeable battery
  • Up to 100 hours battery life
  • Weighs 5.07 lbs
  • Size: 6.77"" L x 8.31"" W x 8.07"" H
  • Multi-purpose laser

    APPLICATIONS:

    • Checking/Setting Elevations No
    • Transferring Points from Floor to Ceiling No
    • Machine Control of Excavators, Graders, Dozers or Similar Equipment Yes
    • Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.) Yes
    • Short-Range Leveling for Decks, Patios & Swimming Pools No
    • Installation/Leveling Interior Walls Yes
    • Installation/Leveling Ceiling Grids No
    • Squaring and Layout of Partitions, Walls & Tile Floors No
    • Concrete Forms, Footings and Foundations Yes
    • Plumb Reference No
    • Checking Elevations of Sub-Base and Sub-Grade No
    • Short-Run Vertical Alignment No
    • Checking Building Square & Area No
    • Estimating Cut & Fill No
    • Matching Existing Slope & Grade Yes
    • Locating Finished Floor Levels No

    INCLUDES:

    • Topcon RL-H5A Horizontal Self-Leveling Rotary Laser
    • Receiver mounting bracket
    • Hard carrying case
    • LS-80L
    • Tripod
    • Staff
    • User manual
    Tech Specs
    • Color Red
    • Range
    • Interior Up to 2,600 feet (800 m)
    • Exterior Up to 2,600 feet (800 m)
    • Self Leveling ±5 degrees
    • Battery Life with Rechargeable Battery Pack Up to 60 hours
    • Battery Life with Alkaline Batteries Up to 100 hours
    • Power Source D alkaline or rechargeable battery pack
    • Battery Life Alert No
    • Protection Class IP66 dustproof and water resistant
    • Tripod Adapter (Center Screw Thread) N/A
    • Removable Laser Cage (for exact beam spotting) N/A
    • Adjustable Rotating Speed 600 RPM only
    • Weight 5.07 lbs (2.3 Kg)
    • Horizontal ±1/16 inch at 100 feet
    • Slope Match Yes
    • Grade Operation No
    • Automatic Leveling Yes
    • Beam Operating Modes No
    • Scanning Modes No
