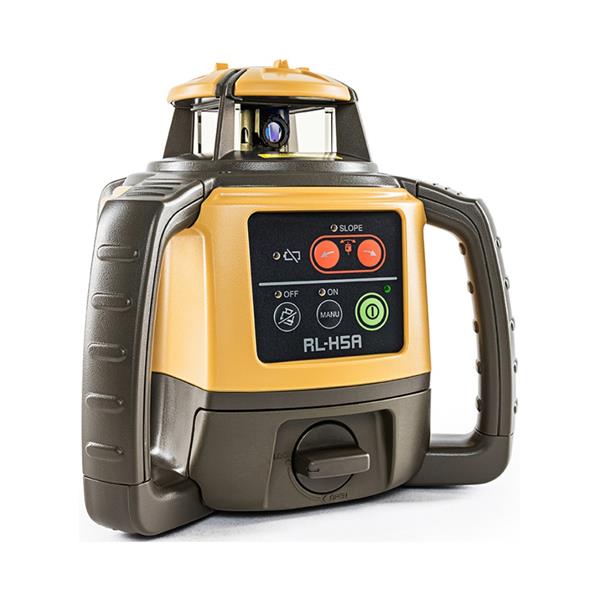

Topcon 1052625-01 RL-H5A/E2 Horizontal Self-Leveling Rotary Laser with LS-80L Reciever

by Topcon
SKU 1052625-01
Original price €799.00 - Original price €799.00
Original price
€799.00
€799.00 - €799.00
Current price €799.00

VAT Included

The Topcon RL-H5A Horizontal Self-Leveling Rotary Laser is a multi-purpose laser ideal for grading, excavating, site preparation, concrete works, and other general construction projects. When used with a receiver, it offers a long operating range up to 2,600 feet in diameter. This laser level also offers an accuracy of up to 1/16" at 100 feet and is self-leveling within 5 degrees.

For added precision and accuracy, the RL-H5A features a manual single-axis leveling mode and rotates 600 times per minute. This horizontal rotating laser is simple to use, intuitive, and re-levels itself immediately if the device is disturbed on the job.

With an IP66 rating, the Topcon RL-H5A is protected from dust and low-pressure water jets. This rotary laser uses either a dry cell or a rechargeable battery that can power the device up to 100 hours, making it the great companion for a long day at work.

FEATURES:

  • Range up to 2,600 feet with receiver
  • Accuracy 1/16" at 100 feet
  • Manual single-axis leveling
  • Self-leveling within 5 degrees
  • Rotation speed: 600 RPM
  • Re-levels immediately if disturbed
  • IP66 dustproof and water resistant
  • Option for dry cell or rechargeable battery
  • Up to 100 hours battery life
  • Weighs 5.07 lbs
  • Size: 6.77" L x 8.31" W x 8.07" H
  • Multi-purpose laser

APPLICATIONS:

  • Checking/Setting Elevations No
  • Transferring Points from Floor to Ceiling No
  • Machine Control of Excavators, Graders, Dozers or Similar Equipment Yes
  • Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.) Yes
  • Short-Range Leveling for Decks, Patios & Swimming Pools No
  • Installation/Leveling Interior Walls Yes
  • Installation/Leveling Ceiling Grids No
  • Squaring and Layout of Partitions, Walls & Tile Floors No
  • Concrete Forms, Footings and Foundations Yes
  • Plumb Reference No
  • Checking Elevations of Sub-Base and Sub-Grade No
  • Short-Run Vertical Alignment No
  • Checking Building Square & Area No
  • Estimating Cut & Fill No
  • Matching Existing Slope & Grade Yes
  • Locating Finished Floor Levels No

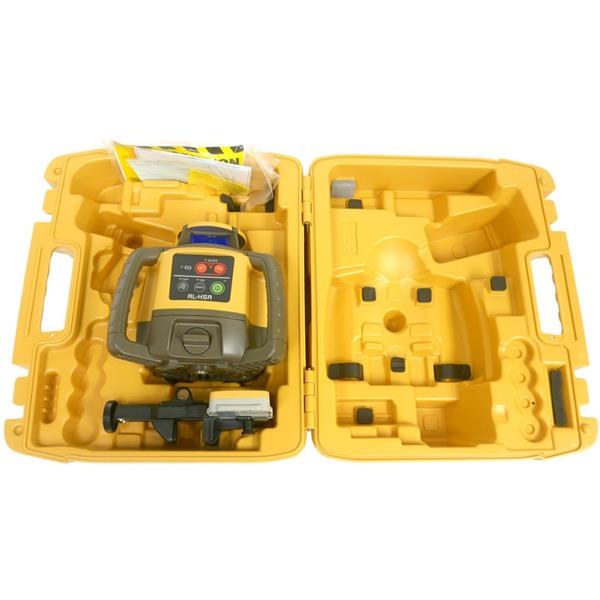

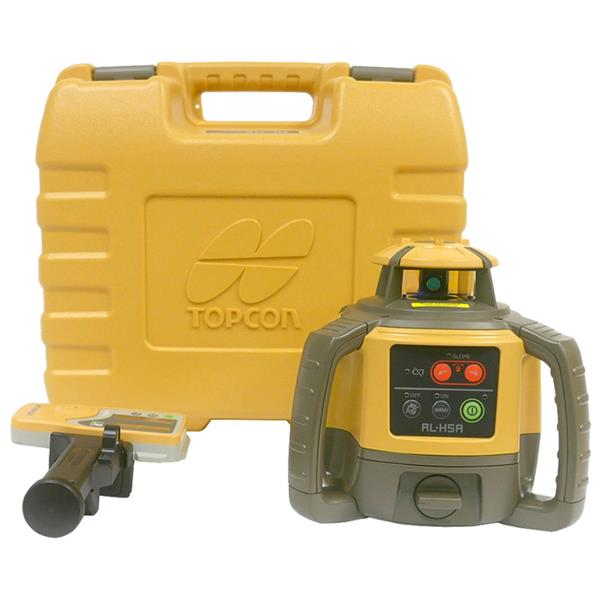

INCLUDES:

  • Topcon RL-H5A Horizontal Self-Leveling Rotary Laser
  • Receiver mounting bracket
  • Hard carrying case

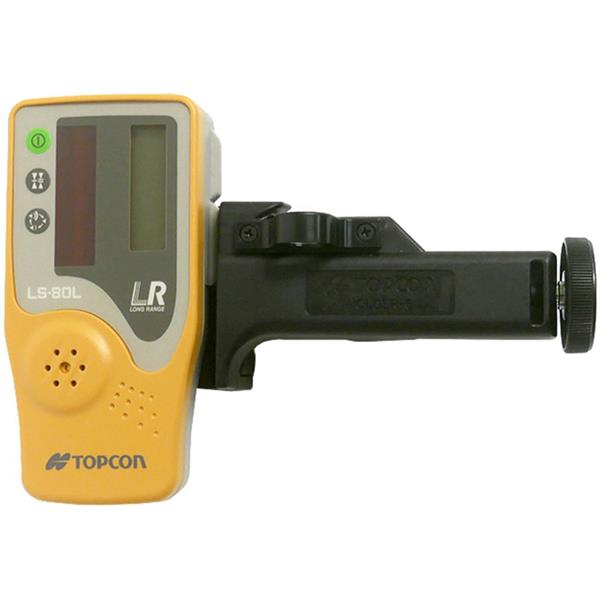

  • LS-80L
  • User manual
Tech Specs
  • Color Red
  • Range
  • Interior Up to 2,600 feet (800 m)
  • Exterior Up to 2,600 feet (800 m)
  • Self Leveling ±5 degrees
  • Battery Life with Rechargeable Battery Pack Up to 60 hours
  • Battery Life with Alkaline Batteries Up to 100 hours
  • Power Source D alkaline or rechargeable battery pack
  • Battery Life Alert No
  • Protection Class IP66 dustproof and water resistant
  • Tripod Adapter (Center Screw Thread) N/A
  • Removable Laser Cage (for exact beam spotting) N/A
  • Adjustable Rotating Speed 600 RPM only
  • Weight 5.07 lbs (2.3 Kg)
  • Horizontal ±1/16 inch at 100 feet
  • Slope Match Yes
  • Grade Operation No
  • Automatic Leveling Yes
  • Beam Operating Modes No
  • Scanning Modes No
