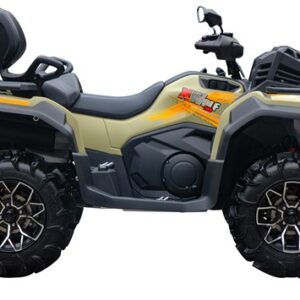

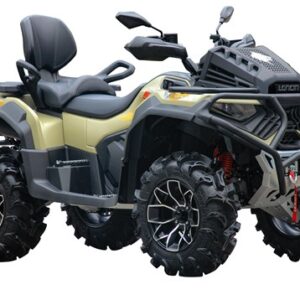

X WOLF 700 MUD VERSION

by LONCIN

LONCIN 686CC engine, liquid-cooled, single cylinder, four valves, SOHC structure (low intake resistance, high inflation efficiency, strong power), sharing BMW manufacturing platform technology, aluminum alloy cylinder block +

Ni-Sic composite coating, higher wear resistance, strong corrosion resistance, better heat dissipation.

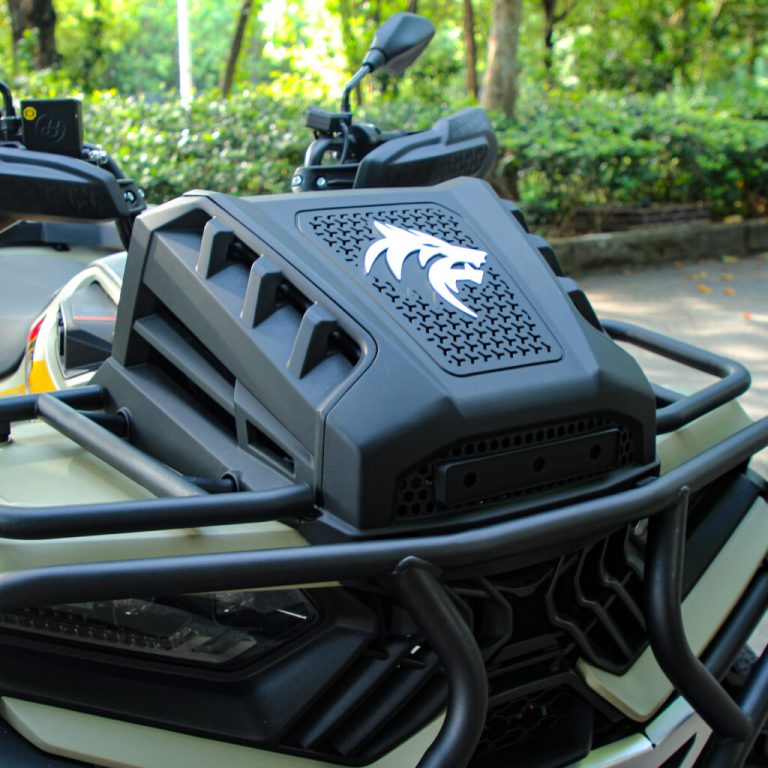

Oversized RADIATOR, in an upper position, dissipates heat with the intake channel (patented), with a design fully integrated into the vehicle.

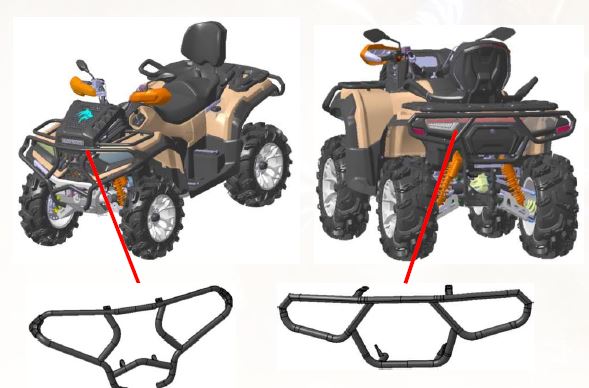

Front and rear bumpers included, fully integrated into the vehicle design, making a vehicle with more protection in case of possible impacts, always protecting its integrated optics (LED)

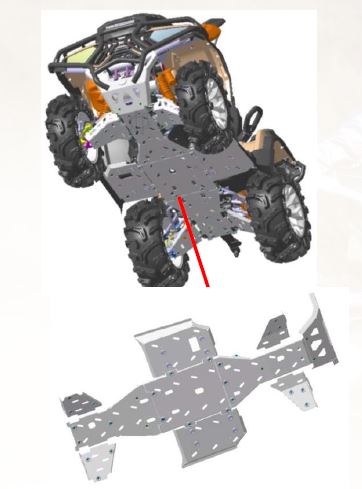

HIGH QUALITY ALUMINUM UNDERBOARD COVERS

Thanks to its 6mm aluminum protectors, the chassis protection is maximum, allowing this vehicle to overcome all road tests.

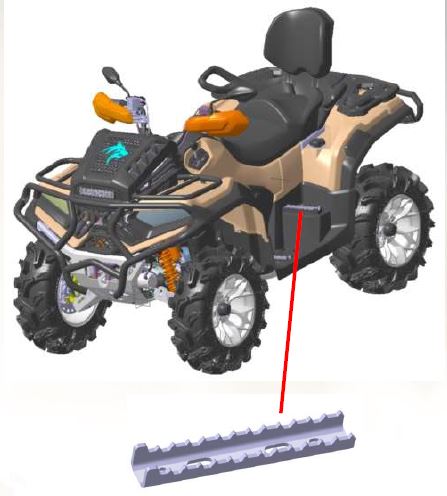

NEW METAL FOOTPEGS

New metal footrests, with serrated design, to prevent feet from slipping while driving.

Motor

Type of Motor: Single Cylinder, SOHC, 4-Stroke, Oil and Water Cooling

Cylinder Capacity: 686 cc

Diameter x Stroke: 102mm x 84mm

Maximum Power: 35kW / 5500 RPM

Maximum Torque: 66Nm / 4500 RPM

Compression: 9.7:1

Fuel Supply: EFI

Transmission: CVT, P/R/N/H/L, Engine Parking

Front Differential: Yeah

EPS: Yeah

Chasis

Length x Width x Height: 2305mm x 1230mm x 1460mm

Wheelbase: 1480mm

Ground Clearance: 310mm

Weight: 459kg

Maximum Load Capacity:

Front: 0 lbs

Rear: 100lbs


Fuel Tank Capacity: 25L

Maximum Speed: 100km/h (limited to 60km/h T3 approval)

Dimensions & Weight

Front Suspension: Double Arm 180mm

Front Shock Absorption: Adjustable Gas Compression and Preload

Rear Suspension: Double Arm 210mm

Rear Shock Absorption: Adjustable Gas Compression and Preload

Rocker Arm Protector: Yeah

Front Brake: Disc (210mm)

Rear Brake: Disc (210mm)

Lead: 27x9-R14

Rear: 27x11-R14

Axis: Aluminum Wheel
