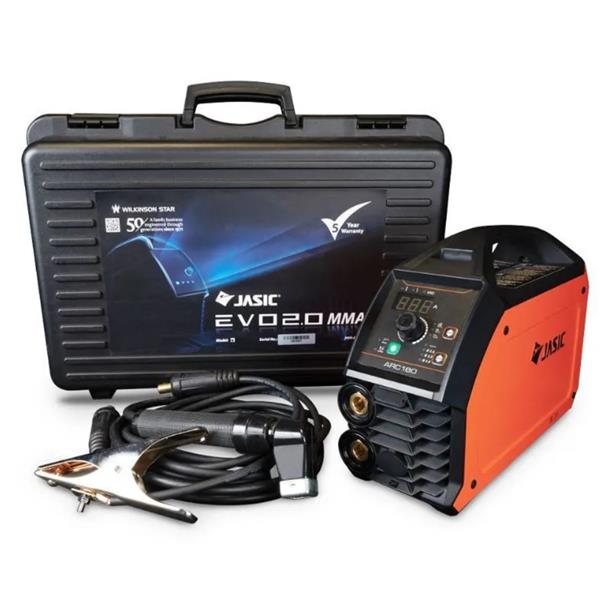

Jasic Evo Arc Inverter Welder 180AMP 230V With Kit Box (with Leads)

• The JASIC EVO POWER ARC 180 (EPA-180) is the entry price point stick welder from the Jasic EVO series.  Perfect for those looking to run a great quality stick welder from a 230V mains power supply (including generators).  Features still include the intuitive large format display, clear to see even from a distance, as well as the heavy duty shell and aggressive look, synonymous with the Jasic EVO series.
• The new ClearVision technology combines a high definition led screen mounted at the optimum angle for improved visibility and increased viewing comfort.   Additionally, the surprisingly lightweight structure makes this unit very portable. Switch with ease between MMA mode and Smart Lift TIG mode with one button press.
• Supplied with a durable protective case and MMA lead set.
• Runs from a 230V power supply

WHAT’S NEW? [Jasic EVO Power Arc 160 Control Panel]

• As a result of extensive research and development, the EVO Power Arc 180 PFC (EPA-180) Inverter Welder boasts a wide range of new features. Firstly, Intelligent Synergic Control allows for pre-programmed setting of electrode sizes for easy operation and setup.  The unit includes a selection ability for electrode sizes.
• Smart Lift TIG controls the short circuit current at the start consequently avoiding tungsten contamination.  Furthermore, the system also identifies accidental short circuits to maintain welding.  In addition, the arc length cut off feature eliminates arc wander.
• A sleep function to save power kicks in when not the machine has not been in use to reduce energy consumption.  A simple push of a button awakens the machine, ready for the next weld.  A fan on demand maintains optimum working temperature by starting when required but stops when it is not required, again to decrease energy consumption and noise emissions.
• With safety and efficiency in mind, the Jasic EVO Power Arc 180 (EPA-180) is fitted with a voltage reduction device (VRD) and works by lowering the open circuit voltage (OCV) to a safer level.  This reduces any potential dangers, since open circuit voltage is produced when a welding machine is switched on and could normally be hazardous by accidentally touching the welding holder or electrode.
• Overcurrent and overheat protection is also inbuilt to ensure the machine does not cause damage to itself.

IN A WORD

• The EVO ARC has a very straightforward front panel.
• From left to right you will first encounter a green button that allows you to switch between between MMA mode and Smart Lift TIG mode.
• The second button along allows you to toggle between electrode sizes of 2.5mm, 3.2mm and 4.0mm, in addition there is also a setting that gives the option for a manual custom input.
• The third button allows you to switch between amperage control, hot start and arc force.
• Furthermore, the potentiometer controlled dial provides a smooth and accurate means of setting your required amperage.
• Finally the last button you will notice (4th from the left) lets you switch between the machine controls or a separate wired/wireless remote control which is available as an additional accessory.

SYNERGIC SET UP

• The front panel allows the user to select the electrode diameter being used.  The machine will then default to a set amperage which is deemed appropriate for the welding rod size.  The knob can be used to increase or decrease the amperage within a set range for the electrode size selected.
• Rather not use this?  No problem – select the dotted parameter and the machine can be used fully manually.

Key Features

•  Rugged, ergonomic design
•  ClearVision technology – Intuitive user friendly interface
•  Intelligent synergic control – Optimal pre programmed amperage settings per electrode size
•  Smart Lift TIG – Helps arc starting and helps with accidental touch downs
•  Quick factory reset
•  Anti-stick, adjustable hot start and arc force – Easier arc starting, adjustment of arc characteristics and assistance with accidental touch downs
•  Dedicated wireless remote control (optional)
•  Remote control receiver module (optional)
•  ABAP: Active Balancing Air Passage – Efficiently cools whilst keeping particulates out of the components
•  Fan on demand – reduced noise and energy consumption
•  Voltage Reduction Device (VRD)
•  Key power electronic component protection
•  Overcurrent and overheat protection
•  Complete with protective case and MMA lead

ABOUT THE EVO 2.0 SERIES

• Redefined Industrial Design & HMI (human-machine interface)
• Rugged, robust looks with ergonomic features
• User-centric human-machine interface experience
• Flexible remote control solutions

Solid Welding Performance

• Dash-Arc technology for high frequency TIG
• Smart Lift-TIG arc sensing technology
• Consistent and efficient MIG spot welding performance
• Intelligent synergic control

High Standards in Safety, Reliability, Sustainability

• Auto sleep mode for reduced energy consumption
