FLUKE FLUKE PTi120 Thermal Imaging Camera FLU-PTI120

FLUKE PTi120 Thermal Imaging Camera

by FLUKE
SKU FLU-PTI120
FLUKE
€1,050.00 - €1,050.00
€1,050.00
€1,050.00 - €1,050.00
€1,050.00

VAT Included

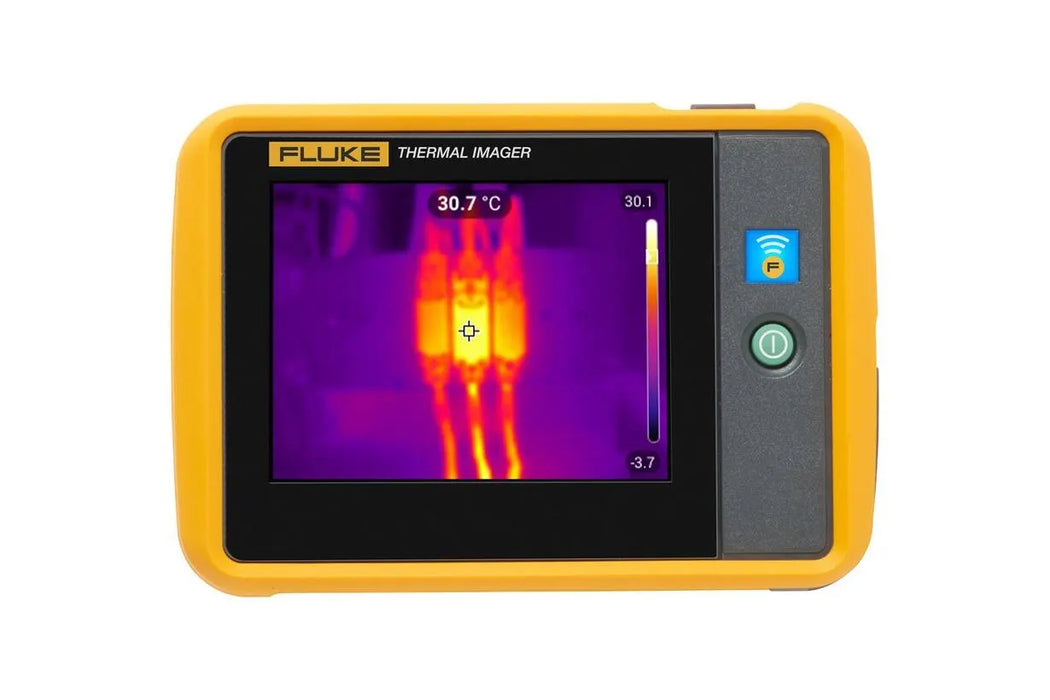

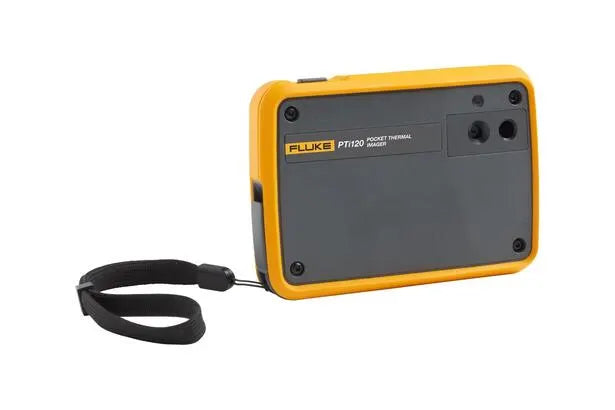

Compact Fluke PTi120 Pocket Thermal Camera

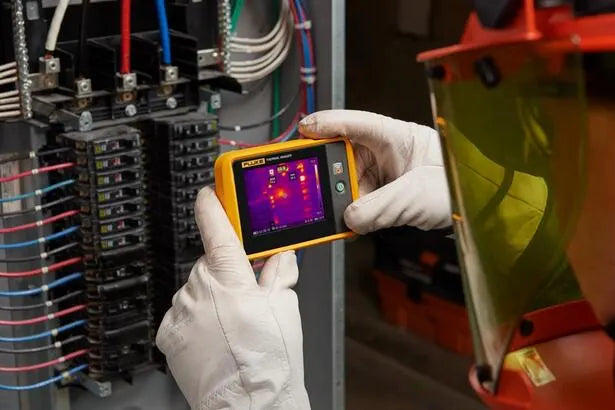

Available at Walshplant.ie, the Fluke PTi120 is a rugged, easy-to-use thermal imager designed for electrical and industrial inspection. Compact enough to carry every day, it's ideal for first-line troubleshooting — quickly scanning electrical equipment, pumps, motors, building systems, HVAC and process control equipment for hot spots and cold spots that can signal early signs of trouble.

The 3.5" LCD touchscreen uses IR-Fusion technology to automatically capture a visible light image alongside the infrared image, letting you blend between full infrared and full visible light with a simple slide of the finger — making it easy to locate problems fast.

With Fluke Connect Asset Tagging, you can scan an asset's QR code or barcode and have infrared images, along with date and time stamps, automatically filed into pre-defined folders — saved via WiFi or uploaded automatically over USB. Built rugged to survive dirt, water, and drops of up to 1 metre, it puts professional-grade thermal inspection in your pocket.

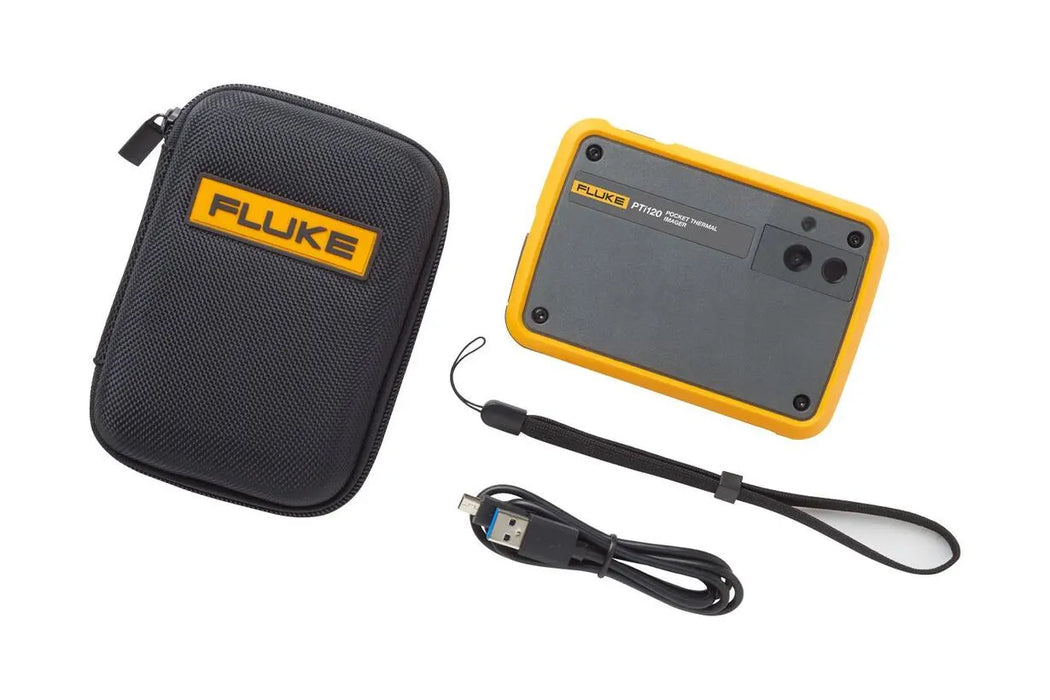

What's in the Box

  • Fluke PTi120 Pocket Thermal Camera (9 Hz)

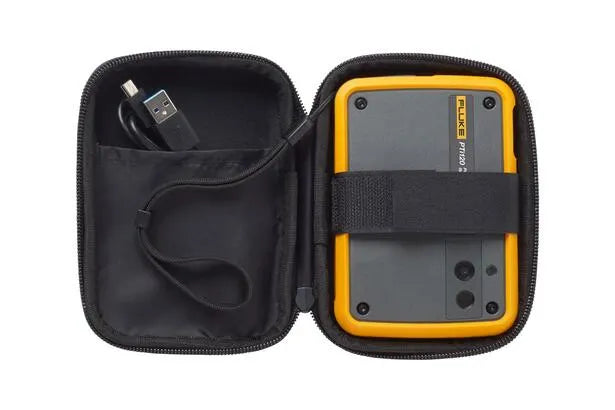

  • Soft case
  • Lanyard
  • USB cable

Key Features

  • Fully radiometric thermal imager with 120 x 90 infrared resolution (10,800 pixels)
  • 3.5" LCD touchscreen display with IR-Fusion
  • Automatic image organisation via Fluke Connect Asset Tagging
  • -20°C to +400°C temperature measurement range
  • Six colour palettes
  • Rugged design — withstands drops up to 1 metre
  • IP54 enclosure rating
  • Subject to Export Control


Manuals

- Fluke PTi120 | Users manual
- Others can be found here on FLUKE.COM



Tech Specs

Model: FLK-PTi120 9 Hz

IFOV (spatial resolution): 7.6 mRad

Infrared resolution: 120 x 90 (10,800 pixels)

Field of view: 50° H x 38° V

Distance to spot: 130:1

Temperature measurement range: -20°C to 400°C (not calibrated below -10°C)

Focus system: Fixed focus, minimum focus distance 22.8 cm

USB: Mini USB, used to transfer images to PC

Wifi: Yes

IR-Fusion technology: Yes

AutoBlend mode: Continuous 0% to 100%

Touchscreen display: 3.5" landscape, 320 x 240 LCD

Rugged, ergonomic design: Yes

Thermal sensitivity (NETD): 60 mK

Frame rate: 9 Hz

Memory: 2GB internal flash

Image capture: One-handed capture, review, and save

Image file formats: Non-radiometric (JPEG) or fully radiometric (.is2)

Software: Fluke Connect desktop software

Export file formats: JPG, IS2

Batteries: Internal rechargeable lithium-ion

Battery life: ≥2 hours continuous (without WiFi)

Battery charging time: ≤1.5 hours

Battery charging system: Mini USB cord from product to PC

AC operation: With separate AC to USB adapter (not included)

Power saving: Automatic shutdown after 5, 10, 15, 20 minutes, or never

Accuracy: ±2°C or ±2% (target temp at or over 0°C)

Standard colour palettes: 6 – Ironbow, Blue-Red, High Contrast, Amber, Hot Metal, Grayscale

Infrared spectral band: 8 μm to 14 μm (long wave)

Operating temperature: -10°C to +50°C (14°F to 122°F)

Storage temperature: -40°C to +70°C (-40°F to 158°F)

Relative humidity: 95% non-condensing

Drop: 1 metre

Size (H x W x L): 8.9 x 12.7 x 2.5 cm

Weight (battery included): 0.233 kg (0.514 lb)

Enclosure rating: IP54

Warranty: Two years

Supported languages: Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish
