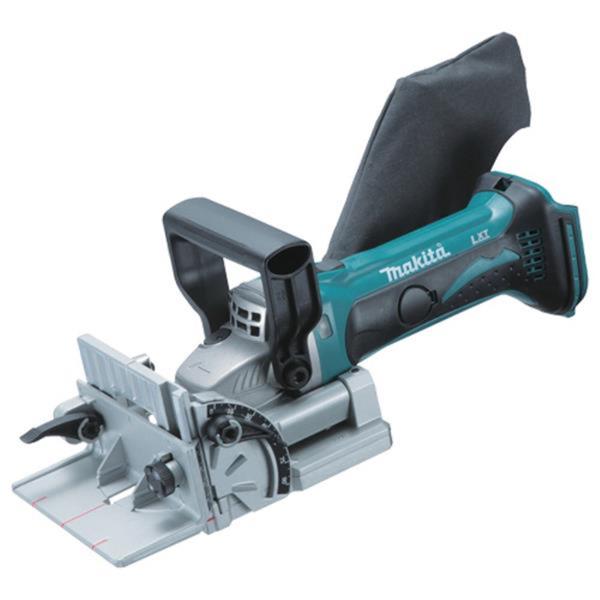

Makita DPJ180Z 18V LXT Cordless Biscuit Jointer (Bare Unit)

Makita DPJ180Z 18v LXT Cordless Biscuit Jointer Body Only

The Makita 18V LXT Lithium-Ion Cordless Biscuit Joiner (model DPJ180Z) provides portability and performance in the field or in the shop - without the cord. The DPJ180 combines power and precision with ease-of-use features for strong and accurate biscuit joints for furniture making, cabinet construction and fine woodworking applications.

The DPJ180 provides approximately 300 cuts or 150 joints on a single charge (with 18V LXT 3.0Ah battery, sold separately). The rack-and-pinion vertical fence system is engineered for accurate fence adjustments, and the cast aluminium pivot fence has three positive stops at 0 degrees, 45 degrees, and 90 degrees. The blade diameter is 4 inches, and there are six depth settings with one-touch stops for the most common biscuit sizes including #0, #10 and #20.

FEATURES:

• Compact and lightweight design
• The same easy-to-grip slim motor housing as used for on the DGA452 angle grinder
• Lithium-ion battery, lighter weight, quicker charging and with more run time than an equal voltage Ni-Cad or Ni-MH battery
• Rotatable dust nozzle for easy connection to dust extraction
• Anti-restart function (with warning lamp)
• Shaft lock for easy blade change
• 6 preset cutting depths
• Electronic current limiter for overload protection (with warning lamp)
• Angle adjustable fence with positive stops at 0º, 45º and 90º
• Blade cover can be opened with clamp screws for easy blade change

SPECIFICATIONS:

• Voltage: 18 v
• Blade Diameter: 100 mm
• Blade Thickness: 4 mm
• Hole Diameter: 22 mm
• Number of Teeth: 6
• No Load Speed: 10000 rpm
• Net weight: 3.2 kg

NOISE & VIBRATIONS:

• Sound pressure level (LpA): 74 dB (A)
• Uncertainty (K): 3 dB (A)
• Vibration K factor: 1.5 m/sec²
• Vibration: Cutting MDF: 2.5 m/sec²

INCLUDES:

• 1x DPJ180Z Biscuit Jointer Body Only
• 1x Dust Bag
