Makita DLS110Z Twin 18V Cordless Brushless Slide Compound 260mm Mitre Saw (Bare Unit)

Makita DLS110Z Twin 18v Cordless Brushless Slide Compound 260mm Mitre Saw (Bare Unit)

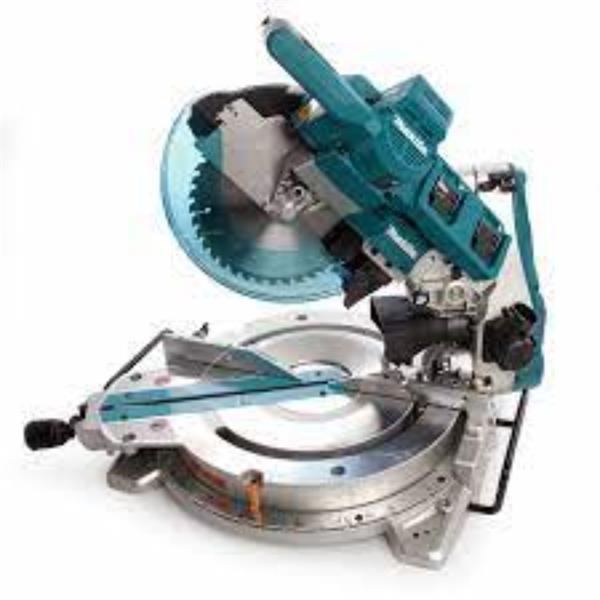

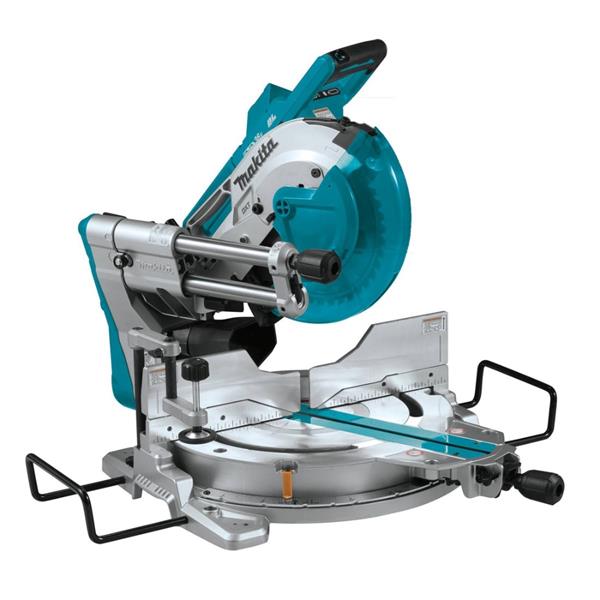

The Makita DLS110 is a 260mm (10-1/4"") cordless slide compound mitre saw powered by two 18V Li-ion batteries in the LXT series. It has been designed based on the LS1019 mains machine.

Sold as body only, this tool requires 2x 18v LXT Lithium-Ion batteries (2x BL1850B 5.0Ah or BL1860B 6.0Ah recommended for best runtime). Batteries and chargers sold separately.

FEATURES:

• Brushless DC motor with high power to weight and size ratio
• Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
• Single sliding system enables smooth operation to produce superior cuts.
• Professional cutting design and performance (similar to corded) with cordless versatility
• Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
• Rail forward design enables saw to be placed against wall to maximize effective workspace
• 3 stage gear reduction system greatly increases capacity when cutting vertical baseboard or nested crown molding
• Integrated guide fence and lower fence increases rigidity and support of materials
• Fence design allows fence to be secured to holders to prevent damage and/or loss
• Front bevel knob enables easy adjustment without reaching for operator convenience and precise setting of bevel angle
• Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
• Soft start feature gradually increases speed to eliminate start up shock
• LED charge level indicator displays approximate remaining battery power
• Bevel capacity of 48 Degree left or right with positive stops at 0, 22.5, 33.9 & 45 Degree
• Mitre capacity of 60 Degree left or right with positive stops at 0, 15, 22.5, 31.6 & 45 Degree
• Large mitre table ideal for use with wide materials
• Easy to operate mitre angle lock with free spin releasing lever and locking lever
• Improved dust collection with dual dust collection ports and dust extractor connectivity
• 2-stage safety switch for increased operator safety
• Ergonomic Horizontal Soft Rubber Grip design for vibration absorption and comfortable operation

SPECIFICATIONS:

• Voltage: 18v + 18v (36v)
• Battery Type: LXT Lithium-Ion
• Blade Diameter: 260 mm
• Blade Body Max Thickness: 3.2 mm
• Bore (Arbor) Diameter: 30 mm
• Max. Mitre Angle: Left 60° / Right 60°
• Max. Bevel Angle: Left 48° / Right 48°
• No Load Speed: 4,400 rpm
• Dimensions (L x W x H): 805 mm x 644 mm x 660 mm
• Net Weight (inc Battery): 27.3 kg

CUTTING CAPABILITIES (H x W)

NOISE & VIBRATIONS:

• Noise Sound Pressure: 92 dB(A)
• Noise Sound Power: 102 dB(A)
• Noise K Factor: 3 dB(A)
• Vibration K Factor: 1.5 m/sec²
• Vibration No Load: 2.5 m/sec² or less

INCLUDES:

• 1x DLS110 Cordless Mitre Saw Body Only
• 1x TCT Saw Blade
• 1x Dust Bag
• 1x Hex Wrench
• 1x Vertical Vice
• 1x Triangular Rule
