Bahco BH8AC3-600 Wheel Dolly

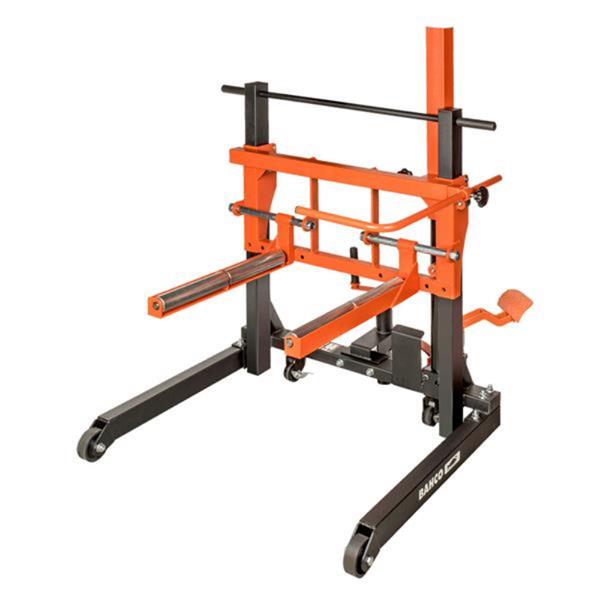

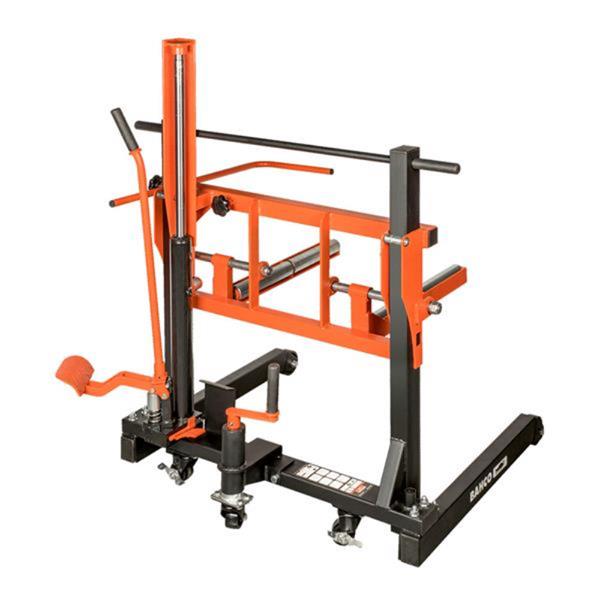

Bahco BH8AC3-600 Hydraulic Wheel Dolly 600kg capacity

Features

• 600 kg hydraulic wheel dolly for helping users with the tyre changing
• Capable of lifting wheels up to 600kg weight
• Dolly wheel system allows tyre tilt to be changed up to 4.1 degrees, matching the vehicle's wheel angle
• Handle or foot pedal systems for wheel lifting
• Perfect balance between quick lift and accurate approach
• Equipped with a powerful hydraulic ram able to reach the maximum height in 40 pedal strokes
• Five position adjustable mechanical system allows fitting a wide range of tyre diameters, from 300 mm to 1300 mm
• Steel rollers allow the tyre to turn by itself to match the vehicle bolt positions
• Safety features

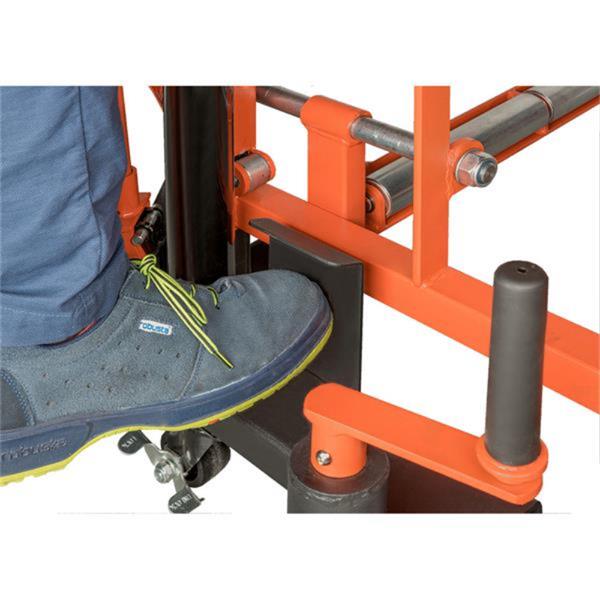

• - Foot pedal release, equipped with “dead man” safety feature
• - Foot stopper to ensure the safety of the user
• - Rear castors are equipped with a brake to secure the wheel dolly and prevent movement during tyre changing
• Steel rollers to allow the tire to turn so it is aligned with the vehicle bolt position
• Easy wheel transport thanks to the handles and four castors

Specifications

• CE certified according to Directive 2006/42/EC and BS EN1494
